TS-1508 is the ideal solution for the fueling station owner who requires basic, straightforward functionality in a fuel monitoring system. The TS-1508 system monitors in real time fuel transaction and manage the fleet consumption. The system provides accurate, reliable information without any manually process Additional features communicate the pump contents, including fuel status, pulse meter signal, nozzle switch mode, and tank level monitoring., as well as custom alerts which can be sent to email or mobile devices. The Triple Sense is the highest quality, best value solution available for any fueling station that requires essential fuel management system and monitoring capabilities.

  • Design for Industrial Application
  • Stability and Reliability
  • High Performance
  • Standard and Convenience

Design for Industrial Application

  • High-powered industrial quad band cellular module
  • High-powered industrial 16/32 bits CPU (ARM 32-bit Cortex™-M3 CPU)
  • Support low-consumption mode, including sleep mode, scheduled online/offline mode.
  • Housing: iron, providing IP30 protection.
  • Power range: DC 12~24V

Product Specification

Cellular Specification
Item Content
Cellular Module Industrial cellular module
Standard and Band GSM/GPRS 850/900/1800/1900MHz Compliant to GSM phase 2/2+ GPRS class 10, class 12(optional)
Bandwidth 85.6Kbps
TX power GSM850/900: < 33dBm GSM1800/1900: < 30dBm
RX sensitivity <-107dBm
Hardware System
CPU ARM Industrial 16/32 bits CPU
FLASH 2MB
FRAME 512KB (Extendable)
Interface type
Item Content
Serial 1 RS232 port and 2 RS485(orRS422) port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Baud rate: 110~230400 bps
Indicator “Power”, “Pulser Signal”, "GSM” , “GPS”
Antenna Standard SMA female interface, 50 ohms, lighting protection(optional)
SIM/UIM Standard user card interface, support 1.8V/3V SIM/UIM card, 15KV ESD protection
Power 2-Wire power, reverse-voltage and over voltage protection
Power supply
Item Content
Standard Power DC 12V/0.5A
Power range DC 12~24V
Consumption < 60mA (12V)
Physical Characteristics
Item Content
Housing Iron, providing IP30 protection
Dimensions 145x80.5x22 mm
Weight 225g
Environmental Limits
Item Content
Operating Temperature -30~+75ºC (-22~+167℉)
Extended Operating Temperature -40~+85ºC (-40~+185℉)
Storage Temperature -40~+85ºC (-40~+185℉)
Operating Humidity 95% (unfreezing)

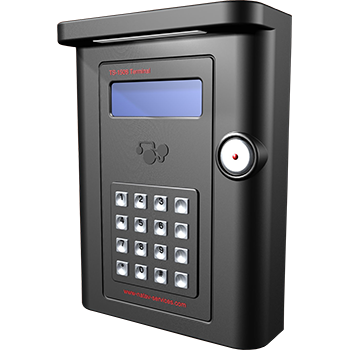

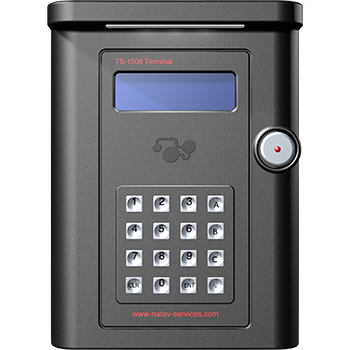

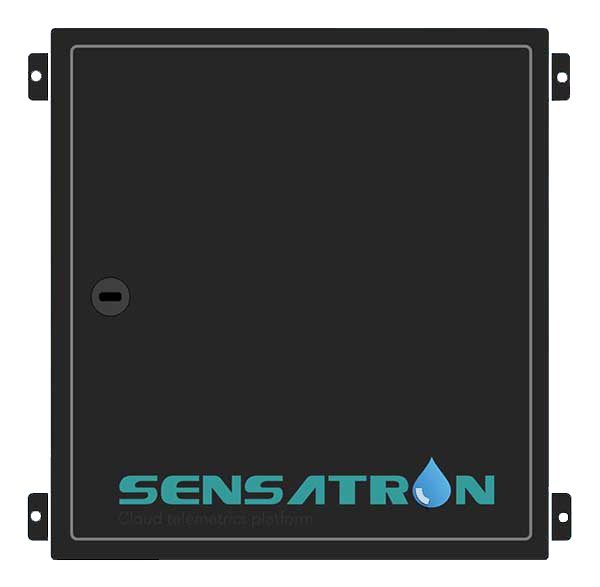

TS-1508 Terminal

about image

TS-1508 Terminal is payment solution for the fueling station owner who requires basic, straightforward functionality in a fuel monitoring system. The TS-1508system monitors in real time fuel transaction and manage the fleet consumption. The system provides accurate, reliable information without any manually process Additional features communicate the TS-1508/1 CPU for display pump contents, including fuel status, pulse meter signal, nozzle switch mode, and tank level monitoring.

  • Design for Industrial Application
  • Stability and Reliability
  • High Performance
  • Standard and Convenience

Design for Industrial Application

  • High-powered industrial quad band cellular module
  • High-powered industrial 16/32 bits CPU (ARM 32-bit Cortex™-M3 CPU)
  • Support low-consumption mode, including sleep mode, scheduled online/offline mode.
  • Housing: iron, providing IP30 protection.
  • Power range: DC 12~24V

Product Specification

Serial Specification
Item Content
Serial Module Industrial cellular module
Bandwidth 33,000 Kbps
TX power < 33bps < 30bps
RX sensitivity <-107bps
Hardware System
CPU ARM Industrial 16/32 bits CPU
FLASH 4MB
FRAM 512KB (Extendable)
Interface type
Item Content
Serial 4 RS232 port and 2 RS485(orRS422) port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Baud rate: 110~230400 bps
Indicator “Power”, "Power Signal”
Antenna Standard SMA female interface, 50 ohms, lighting protection(optional)
Ports Standard user card interface, support 1.8V/3V SIM/UIM card, 15KV ESD protection
Power 2-Wire power, reverse-voltage and over voltage protection
Power supply
Item Content
Standard Power DC 12V/0.5A
Power range DC 12~24V
Consumption < 60mA (12V)
Physical Characteristics
Item Content
Housing Iron, providing IP65 protection
Dimensions 260x190x50 mm
Weight 2800g
Environmental Limits
Item Content
Operating Temperature -40~+85ºC (-40~+185℉)
Extended Operating Temperature -40~+85ºC (-40~+185℉)
Storage Temperature -40~+85ºC (-40~+185℉)
Operating Humidity 95% (unfreezing)
