LoopTag system starts working once a VIU equipped vehicle enters the station.The system is authorized per transaction on the vehicle’s identity and is commonly used as a tool to secure the refueling process.LoopTag using sophisticated RFID tag (VIU) mounted on the machine or vehicle around or near the fuel filler neck. All the remaining hardware and electronic components are part of the fuel management system logic. An RFID reader (NRTU) installed on the fuel nozzle reads the unique UID code from the passive RFID tag and transmits it to a computer on the fuel station (FMS),The FMS checks the UID code against a database to make sure it is an authorized unit. It then enables the fuel pump and records the volume of fuel dispensed. the systems include module that provide an odometer reading based on the machine’s routs.

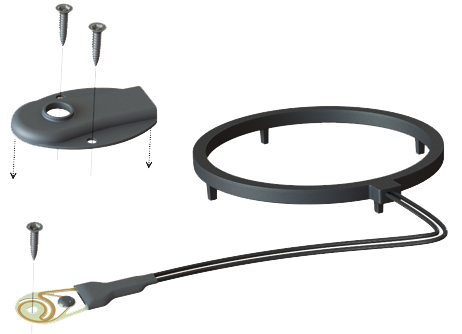

LoopTag VIU is a smart electronic unit using a low frequency (LF) RFID component. Each VIU has its unique ID and a security system including a sophisticated self-destruct mechanism.
The VIU does not require external power and works on induction on a uniform data structure and transmission system between devices.
They are designed for easy application on most industrial or consumer vehicles to wirelessly identify authorized vehicles to use the filling station and fuel type required controlled by Fuel Management Systems (FMS).
LoopTag VIU tags are water and fuel-resistant and architected to withstand commercial fleet and retail fueling environments. to prevent fraudulent activities, vehicle tag models self-destruct if removed after installation

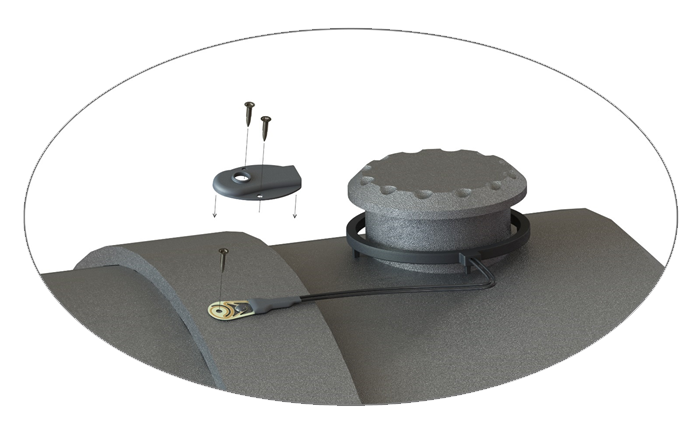

LoopTag VIU’s are available in several form factors, including built in to custom-made inlet adaptors and anti-siphon devices, to allow maximum flexibility during installation and operation, and to ensure robustness and perfect suitability for the operating environment.
This data incorporates cutting-edge encryption preventing duplication, copying, reading, and changing the contained data.
A unique algorithm will destroy this data during a copying attempt.
The VIU is designed for modern vehicles where internal systems must be isolated from any external system.
For vehicles with multiple tank, each fuel hatch will have its own VIU and all will be programmed to the vehicle.
The VIU was designed for work under harsh environmental conditions, such as extreme cold or heat, fuel spills, and high-pressure steam cleaning of the fueling hatch.
